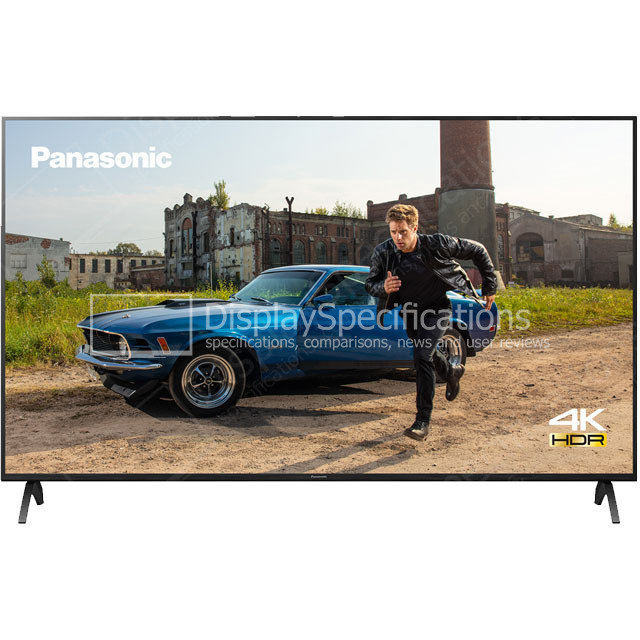

64.5" Panasonic TX-65HX940 - Specifications

WidthHeightDepthWeightWrite a review
SpecificationsDisplayPower consumption
Display: 64.5 in, IPS, Edge LED, 3840 x 2160 pixels
Viewing angles (H/V): 178 ° / 178 °
Refresh rate: 100 Hz / 120 Hz
Frame interpolation: 2200 BMR (Backlight Motion Rate)
TV tuner: DVB-T, Analog (NTSC/PAL/SECAM), DVB-T2, DVB-S2, DVB-C
Dimensions: 1454 x 840 x 45 mm
Weight: 27.5 kg

Add to compare Suggest an edit

Brand, series, model

Information about the brand, series, model and model aliases.

Brand

Name of the company-manufacturer.

Panasonic
Series

Name of the series, which the model belongs to.

HX940
Model

Designation of the model.

TX-65HX940
Model alias

Other known designations of the model.

TX-65HX940E
TX-65HX940B
TX-65HXW944
Model year

The year in which this model was announced.

2020

Display

Information about the main characteristics of the display - panel, backlight, resolution, refresh rate, etc.

Size class

Size class of the display as declared by the manufacturer. Often this is the rounded value of the actual size of the diagonal in inches.

64.5 in (inches)
Diagonal

Approximate diagonal size of the display. If the manufacturer does not provide such information, the diagonal is calculated from the width and height of the screen.

1639 mm (millimeters)
163.9 cm (centimeters)
64.5276 in (inches)
5.3773 ft (feet)
Width

Approximate width of the display. If the manufacturer does not provide such information, the width is calculated from the diagonal and the aspect ratio.

1428.48 mm (millimeters)
142.848 cm (centimeters)
56.2394 in (inches)
4.6866 ft (feet)
Height

Approximate height of the display. If the manufacturer does not provide such information, the height is calculated from the diagonal and the aspect ratio.

803.52 mm (millimeters)
80.352 cm (centimeters)
31.6346 in (inches)
2.6362 ft (feet)
Panel type

There are various panel technologies. Each has its own specific features - viewing angles, color reproduction, response time, brightness/contrast, production cost, etc. The image quality depends directly on the type of the display panel used.

IPS
Panel bit depth

The most widely used panels are those with 6, 8, and 10 bits for each of the RGB components of the pixel. They provide 18-, 24-, and 30-bit color, respectively.

10 bits
FRC

Frame Rate Control (FRC) is a method, which allows the pixels to show more color tones. With quick cyclic switching between different color tones, an illusion for a new intermediate color tone is created. For example, by using FRC, a 6-bit display panel is able to show 16.7 millioin colors, which are typical for 8-bit display panels, and not the standard 262200 colors, instead. There are different FRC algorithms.

No
Colors

The maximum number of colors, which the display is able to reproduce, depends on the type of the panel in use and color enhancing technologies like FRC.

1073741824 colors
30 bits
Aspect ratio

The ratio between the horizontal and the vertical side of the display. Some of the standard and widely used aspect ratios are 4:3, 5:4, 16:9 and 16:10.

1.778:1
16:9
Resolution

Information about the number of pixels on the horizontal and vertical side of the screen. A higher resolution allows the display of a more detailed and of higher quality image.

3840 x 2160 pixels
Ultra HD (UHD) / 4K / 2160p
Pixel pitch

The pixel pitch shows the distance from the centers of two neighboring pixels. In displays, which have a native resolution (the TFT ones, for example), the pixel pitch depends on the resolution and the size of the screen.

0.372 mm (millimeters)
0.0372 cm (centimeters)
0.0146 in (inches)
0.0012 ft (feet)
Pixel density

Information of the number of pixels in a unit of length. With the decrease of the display size and the increase of its resolution, the pixel density increases.

68 ppi (pixels per inch)
26 ppcm (pixels per centimeter)
Display area

The percentage of the approximate area, taken by the active part of the screen, to the total front area.

93.98 % (percent)
Backlight

The backlight is the source of light of the LCD display panels. The type of backlight determines the image quality and the color space of the display. There are various backlights such as CCFL, LED, WLED, RGB-LED, and etc.

Edge LED
HDR

HDR expands the contrast ratio (peak luminance and minimal black levels) and color palette to achieve more details across the whole image - from the darkest parts to the brightest ones, which results in more realistic and life-like image.

HDR10
HDR10+
HLG (Hybrid Log Gamma)
Dolby Vision
HLG Photo
Horizontal viewing angle

Information about the maximum horizontal viewing angle, within which the image on the screen is of acceptable quality.

178 ° (degrees)
Vertical viewing angle

Information about the maximum vertical viewing angle, within which the image on the screen is of acceptable quality.

178 ° (degrees)

3D

3D displays use various technologies to achieve a 3D effect. Each of these technologies has its own advantages and drawbacks.

3D

Information on whether 3D is supported or not.

No

Frequencies

Information about the horizontal and vertical refresh rates/frequencies.

Vertical frequency (digital)

The vertical frequency/refresh rate shows how many times in a second the image on the screen is refreshed.

100 Hz / 120 Hz (hertz)

Frame interpolation

Many smart TV sets use a technology for interpolating (inserting) of intermediate frames between existing ones in order to achieve more fluent visualization, especially for dynamic scenes.

Interpolation technology

Frame interpolation technologies differ according to the manufacturer and each has its own specific name.

Backlight Motion Rate
Interpolation value

The frame interpolation value as provided by the manufacturer. This value must not be confused with the refresh rate of the screen.

2200
Interpolation measurement unit

Some manufacturers name commercially the measurement unit of their own interpolation technologies as to denote the degree of interpolation. Very often the measurement unit is an abbreviation of the frame interpolation technology in use.

BMR

Power supply and consumption

Information about the power supply and consumption, energy efficiency class, etc.

220V

Permissible voltage tolerance in a 220-volt electric system.

220 V - 240 V (volts)
Alternating current frequency

Requirement regarding the alternating current frequency in the electric system.

50 Hz - 60 Hz (hertz)
Power consumption (off)

Power consumption in off-mode.

0.3 W (watts)
Power consumption (sleep)

Power consumption in sleep/stand by/suspend mode.

0.5 W (watts)
Power consumption (average)

Average power consumption in standard work mode.

95 W (watts)
Power consumption (maximum)

The maximum possible power consumption.

226 W (watts)
Power consumption (annual)

Estimated power consumption per year in kWh.

132 kWh (kilowatt-hours)
Energy efficiency class

The energy efficiency class/label provides general idea about the power consumption. There are different energy efficiency classes and each sets its own requirements regarding the power consumption. Some of the existent energy efficiency classes are A+++, A++, A+, A, B, C, D, E, F, G.

A+

Dimensions, weight and color

Information about the dimensions and the weight of the specific model with and without stand as well as the colors, in which it is offered to the market.

Width

Width without stand in different measurement units.

1454 mm (millimeters)
145.4 cm (centimeters)
57.2441 in (inches)
4.7703 ft (feet)
Height

Height without stand in different measurement units.

840 mm (millimeters)
84 cm (centimeters)
33.0709 in (inches)
2.7559 ft (feet)
Depth

Depth without stand in different measurement units.

45 mm (millimeters)
4.5 cm (centimeters)
1.7717 in (inches)
0.1476 ft (feet)
Weight

Weight without stand in different measurement units.

27.5 kg (kilograms)
60.63 lbs (pounds)
Width with stand

Width with stand in different measurement units.

1454 mm (millimeters)
145.4 cm (centimeters)
57.2441 in (inches)
4.7703 ft (feet)
Height with stand

Height with stand in different measurement units.

915 mm (millimeters)
91.5 cm (centimeters)
36.0236 in (inches)
3.002 ft (feet)
Depth with stand

Depth with stand in different measurement units.

325 mm (millimeters)
32.5 cm (centimeters)
12.7953 in (inches)
1.0663 ft (feet)
Weight with stand

Weight with stand in different measurement units.

28.5 kg (kilograms)
62.83 lbs (pounds)
Box width

Width of the package in different measurement units.

1852 mm (millimeters)
185.2 cm (centimeters)
72.9134 in (inches)
6.0761 ft (feet)
Box height

Height of the package in different measurement units.

939 mm (millimeters)
93.9 cm (centimeters)
36.9685 in (inches)
3.0807 ft (feet)
Box depth

Depth of the package in different measurement units.

181 mm (millimeters)
18.1 cm (centimeters)
7.126 in (inches)
0.5938 ft (feet)
Box weight

Weight of the product with all accessories and packaging in different measurement units.

36 kg (kilograms)
79.37 lbs (pounds)
Colors

Information about the colors, in which the specific model is offered to the market.

Black

Ergonomics

Information about the ergonomic functions - height adjustment, swivel angles, tilt angles, etc.

VESA mount

Information about whether there is a possibility for wall mounting according to the VESA Mounting Interface Standard (MIS).

Yes
VESA interface

There are many various interfaces under the VESA standard, which differ in the size of the brackets, the distances between the screw holes and their number.

400 x 300 mm
Removable stand

Information about whether the stand can be dismounted. Usually, this is required for wall mounting.

Yes
Height adjustment

Information about whether the stand allows height adjustment.

No
Landscape/portrait pivot

Some displays have the ability to operate in landscape and portrait mode alike.

No
Left/right swivel

Information whether the display can be swiveled around the stand axis.

No
Forward/backward tilt

Most displays have the ability to be tilted forward and backward as to provide a more comfortable viewing position for the user.

No
Stand width - 1341 mm
Stand depth - 325 mm

TV tuner

The TV tuner is a device, which allows the receiving and visualization of a certain type of television signal. There are tuners for digital, analog, cable and satellite television.

TV tuner

Information about the TV tuners, which the current model is equipped with.

DVB-T
Analog (NTSC/PAL/SECAM)
DVB-T2
DVB-S2
DVB-C
Dual tuner

OS, apps and software features

Information about the operating system, applications, various software features if available.

Operating system (OS)

The operating systems of the smart TV sets feature user interface technologies for navigation and other ways of interaction with the smart TV - installing applications, internet browsing, video calls, sharing content with other users, playing videos and music, etc.

my Home Screen 5.0

Audio

Information about the audio system - number and power of the built-in speakers, supported audio technologies.

Speakers

The speaker is a device, which converts electrical audio signals into acoustic vibrations resulting in corresponding sounds.

2 x 10 W (watts)
Cinema Surround
Dolby Atmos

Camera

Many contemporary desktop monitors and smart TV sets have built-in cameras.

Camera

Information whether the current model has a built-in camera or not.

No

Network

Supported network technologies and standards for exchanging data with other devices.

Network

Information about the network technologies and standards supported by the model, which allow for it to connect to and communicate with other devices.

LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Bluetooth
Wi-Fi Direct
DLNA

Connectivity

Available connectivity ports, slots and interfaces.

Connectivity

Information about the available connectivity ports, slots and interfaces such as USB, infrared port, SD card slot, audio/video and network interfaces, etc.

2 x USB 2.0 (max 0.5 A)
1 x USB 3.0 (max 0.9 A)
1 x Ethernet RJ45
4 x HDMI 2.0 (ARC; CEC)
1 x Satellite In (Main; F-type female)
1 x AV Component In (YPbPr + L/R) (CVBS)
1 x Optical Audio Out
1 x 3.5 mm Audio Out
1 x Antenna (RF) (female)
2 x CI+ 1.4
High-bandwidth Digital Content Protection (HDCP) 2.2
Auto Low Latency Mode (ALLM)

Features

Some additional functional features of the model.

Features

Information about additional software features, technologies, functions and services of the model.

Alexa
Dynamic HDR Effect
Google Assistant
HDR Cinema Display Pro
HDR Brightness Enhancer
Image Processor - HCX Pro Intelligent Processor
Light sensor
Local Dimming Pro Intelligent
Picture-at-Picture
Picture-in-Picture
Picture-at-Text
Picture Tuned in Hollywood
Supreme Contrast
TV Anywhere
Voice command
Wide Colour Spectrum

Image file formats

Smart TV sets allow the display of different image file formats.

Image file formats

Information about some of the main image file formats supported by the current model.

JPEG
GIF
PNG
MPO

Audio file formats

Smart TV sets allow playing different audio file formats.

Audio file formats/codecs

Information about some of the main audio file formats/codecs supported by the current model.

AAC (Advanced Audio Coding)
FLAC (Free Lossless Audio Codec, .flac)
MP3 (MPEG-2 Audio Layer II, .mp3)
WMA (Windows Media Audio, .wma)
WAV (Waveform Audio File Format, .wav, .wave)

Video file formats

Smart TV sets allow playing various video file formats.

Video file formats/codecs

Information about some of the main video file formats/codecs supported by the current model.

3GPP (3rd Generation Partnership Project, .3gp)
AVI (Audio Video Interleaved, .avi)
Flash Video (.flv, .f4v, .f4p, .f4a, .f4b)
H.263
H.264 / MPEG-4 Part 10 / AVC video
H.265 / MPEG-H Part 2 / HEVC
MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks)
QuickTime (.mov, .qt)
MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v)
TS (MPEG Transport Stream, .ts, .tsv, .tsa)
VP9
VOB (Video Object, .VOB)
VRO (DVD-VR, .VRO)
WMV (Windows Media Video, .wmv)
AVCHD

Operating and storage conditions

There are certain requirements for the environmental conditions, in which the display should be used and stored in order to function properly.

Operating temperature

The operating temperature shows the safe temperature range (from minimum to maximum), within which the display will function flawlessly. Outside this range it might operate improperly and/or fail entirely.

0 °C - 35 °C (degrees Celsius)
32 °F - 95 °F (degrees Fahrenheit)
Operating humidity

The operating humidity shows the acceptable level of humidity, in which the display will function flawlessly. It sets a lower and an upper humidity level for safe operation and is measured in percentage.

20 % - 80 % (percent)

Other models from the HX940 series of Panasonic

List of other models from the same Panasonic series, to which the Panasonic TX-65HX940 belongs.

View
42.5" Panasonic TX-43HX940, IPS, Edge LED, 3840 x 2160 pixels, 100 Hz / 120 Hz, 962 x 618 x 60 mm, 11.5 kg
View
48.5" Panasonic TX-49HX940, IPS, Edge LED, 3840 x 2160 pixels, 100 Hz / 120 Hz, 1095 x 638 x 44 mm, 15.5 kg
View
54.6" Panasonic TX-55HX940, IPS, Edge LED, 3840 x 2160 pixels, 100 Hz / 120 Hz, 1231 x 714 x 44 mm, 18.5 kg
View
74.5" Panasonic TX-75HX940, VA, Edge LED, 3840 x 2160 pixels, 100 Hz / 120 Hz, 1680 x 966 x 73 mm, 53 kg

Latest comparisons that include Panasonic TX-65HX940

The latest comparisons, made by the website visitors, that include Panasonic TX-65HX940.

Panasonic TX-75JX940
Panasonic TX-65HX940
Panasonic TX-58EX780
View
Panasonic TX-65HX940
Panasonic TX-50CS520
View
Panasonic TX-65HX940
Panasonic TX-65MX950
View
Panasonic TX-65HX940
Panasonic TX-50HX810
View
Panasonic TX-65HX940
Hisense 65E7HQ
View
Metz Blue 65MUC7000
TCL 65P638
Panasonic TX-65HX940
Sony KD-65XH8096
View
Philips 276E8VJSB
Panasonic TX-65HX940
View
Panasonic TX-65HX940
Philips 279M1RV
Asus TUF Gaming VG28UQL1A
View

Last viewed models

A list of the last viewed desktop monitors and TVs.

Panasonic TX-65HX940

64.5" Panasonic TX-65HX940

Display: 64.5 in, IPS, Edge LED, 3840 x 2160 pixels
Viewing angles (H/V): 178 ° / 178 °
Refresh rate: 100 Hz / 120 Hz
Frame interpolation: 2200 BMR (Backlight Motion Rate)
TV tuner: DVB-T, Analog (NTSC/PAL/SECAM), DVB-T2, DVB-S2, DVB-C
Dimensions: 1454 x 840 x 45 mm
Weight: 27.5 kg
