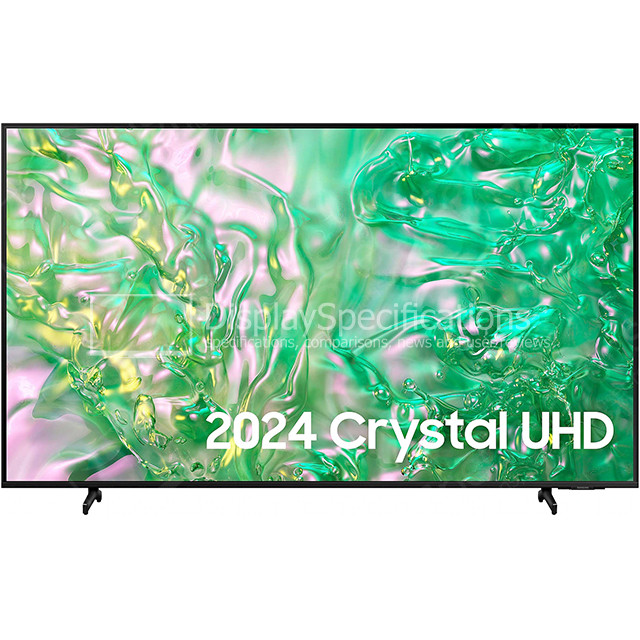

84.6" Samsung TU85DU8075 - Specifications

WidthHeightDepthWeightWrite a review
SpecificationsDisplayPower consumption
Display: 84.6 in, VA, Edge LED, 3840 x 2160 pixels
Viewing angles (H/V): 178 ° / 178 °
Refresh rate: 48 Hz - 120 Hz
TV tuner: Analog (NTSC/PAL/SECAM), DVB-T, DVB-T2, DVB-C, DVB-S, DVB-S2
Cores: 4
Dimensions: 1900.9 x 1086.1 x 26.9 mm
Weight: 41.5 kg

Add to compare Suggest an edit

Brand, series, model

Information about the brand, series, model and model aliases.

Brand

Name of the company-manufacturer.

Samsung
Series

Name of the series, which the model belongs to.

DU8075 / DU8005 / DU8079
Model

Designation of the model.

TU85DU8075
Model alias

Other known designations of the model.

TU85DU8005
TU85DU8075UXXC
TU85DU8005KXXC
GU85DU8079
GU85DU8079UXZG
Model year

The year in which this model was announced.

2024

Display

Information about the main characteristics of the display - panel, backlight, resolution, refresh rate, etc.

Size class

Size class of the display as declared by the manufacturer. Often this is the rounded value of the actual size of the diagonal in inches.

84.6 in (inches)
Diagonal

Approximate diagonal size of the display. If the manufacturer does not provide such information, the diagonal is calculated from the width and height of the screen.

2140 mm (millimeters)
214 cm (centimeters)
84.252 in (inches)
7.021 ft (feet)
Width

Approximate width of the display. If the manufacturer does not provide such information, the width is calculated from the diagonal and the aspect ratio.

1872 mm (millimeters)
187.2 cm (centimeters)
73.7008 in (inches)
6.1417 ft (feet)
Height

Approximate height of the display. If the manufacturer does not provide such information, the height is calculated from the diagonal and the aspect ratio.

1053 mm (millimeters)
105.3 cm (centimeters)
41.4567 in (inches)
3.4547 ft (feet)
Panel type

There are various panel technologies. Each has its own specific features - viewing angles, color reproduction, response time, brightness/contrast, production cost, etc. The image quality depends directly on the type of the display panel used.

VA
Panel bit depth

The most widely used panels are those with 6, 8, and 10 bits for each of the RGB components of the pixel. They provide 18-, 24-, and 30-bit color, respectively.

10 bits (8 bits + FRC)
FRC

Frame Rate Control (FRC) is a method, which allows the pixels to show more color tones. With quick cyclic switching between different color tones, an illusion for a new intermediate color tone is created. For example, by using FRC, a 6-bit display panel is able to show 16.7 millioin colors, which are typical for 8-bit display panels, and not the standard 262200 colors, instead. There are different FRC algorithms.

Yes
Colors

The maximum number of colors, which the display is able to reproduce, depends on the type of the panel in use and color enhancing technologies like FRC.

1073741824 colors
30 bits
Aspect ratio

The ratio between the horizontal and the vertical side of the display. Some of the standard and widely used aspect ratios are 4:3, 5:4, 16:9 and 16:10.

1.778:1
16:9
Resolution

Information about the number of pixels on the horizontal and vertical side of the screen. A higher resolution allows the display of a more detailed and of higher quality image.

3840 x 2160 pixels
Ultra HD (UHD) / 4K / 2160p
Pixel pitch

The pixel pitch shows the distance from the centers of two neighboring pixels. In displays, which have a native resolution (the TFT ones, for example), the pixel pitch depends on the resolution and the size of the screen.

0.488 mm (millimeters)
0.0488 cm (centimeters)
0.0192 in (inches)
0.0016 ft (feet)
Pixel density

Information of the number of pixels in a unit of length. With the decrease of the display size and the increase of its resolution, the pixel density increases.

52 ppi (pixels per inch)
20 ppcm (pixels per centimeter)
Display area

The percentage of the approximate area, taken by the active part of the screen, to the total front area.

95.48 % (percent)
Backlight

The backlight is the source of light of the LCD display panels. The type of backlight determines the image quality and the color space of the display. There are various backlights such as CCFL, LED, WLED, RGB-LED, and etc.

Edge LED
HDR

HDR expands the contrast ratio (peak luminance and minimal black levels) and color palette to achieve more details across the whole image - from the darkest parts to the brightest ones, which results in more realistic and life-like image.

HLG (Hybrid Log Gamma)
HDR
HDR10
HDR10+
Horizontal viewing angle

Information about the maximum horizontal viewing angle, within which the image on the screen is of acceptable quality.

178 ° (degrees)
Vertical viewing angle

Information about the maximum vertical viewing angle, within which the image on the screen is of acceptable quality.

178 ° (degrees)

3D

3D displays use various technologies to achieve a 3D effect. Each of these technologies has its own advantages and drawbacks.

3D

Information on whether 3D is supported or not.

No

Frequencies

Information about the horizontal and vertical refresh rates/frequencies.

Vertical frequency (digital)

The vertical frequency/refresh rate shows how many times in a second the image on the screen is refreshed.

48 Hz - 120 Hz (hertz)

Power supply and consumption

Information about the power supply and consumption, energy efficiency class, etc.

110V

Permissible voltage tolerance in a 110-volt electric system.

100 V - 120 V (volts)
220V

Permissible voltage tolerance in a 220-volt electric system.

220 V - 240 V (volts)
Alternating current frequency

Requirement regarding the alternating current frequency in the electric system.

50 Hz - 60 Hz (hertz)
Power consumption (sleep)

Power consumption in sleep/stand by/suspend mode.

0.5 W (watts)
Power consumption (average)

Average power consumption in standard work mode.

164 W (watts)
Power consumption (maximum)

The maximum possible power consumption.

310 W (watts)
Power consumption (annual)

Estimated power consumption per year in kWh.

227 kWh (kilowatt-hours)
Energy efficiency class

The energy efficiency class/label provides general idea about the power consumption. There are different energy efficiency classes and each sets its own requirements regarding the power consumption. Some of the existent energy efficiency classes are A+++, A++, A+, A, B, C, D, E, F, G.

G

Dimensions, weight and color

Information about the dimensions and the weight of the specific model with and without stand as well as the colors, in which it is offered to the market.

Width

Width without stand in different measurement units.

1900.9 mm (millimeters)
190.09 cm (centimeters)
74.8386 in (inches)
6.2365 ft (feet)
Height

Height without stand in different measurement units.

1086.1 mm (millimeters)
108.61 cm (centimeters)
42.7598 in (inches)
3.5633 ft (feet)
Depth

Depth without stand in different measurement units.

26.9 mm (millimeters)
2.69 cm (centimeters)
1.0591 in (inches)
0.0883 ft (feet)
Weight

Weight without stand in different measurement units.

41.5 kg (kilograms)
91.49 lbs (pounds)
Width with stand

Width with stand in different measurement units.

1900.9 mm (millimeters)
190.09 cm (centimeters)
74.8386 in (inches)
6.2365 ft (feet)
Height with stand

Height with stand in different measurement units.

1129.1 mm (millimeters)
112.91 cm (centimeters)
44.4528 in (inches)
3.7044 ft (feet)
Depth with stand

Depth with stand in different measurement units.

396.6 mm (millimeters)
39.66 cm (centimeters)
15.6142 in (inches)
1.3012 ft (feet)
Weight with stand

Weight with stand in different measurement units.

42.5 kg (kilograms)
93.7 lbs (pounds)
Box width

Width of the package in different measurement units.

2075 mm (millimeters)
207.5 cm (centimeters)
81.6929 in (inches)
6.8077 ft (feet)
Box height

Height of the package in different measurement units.

1237 mm (millimeters)
123.7 cm (centimeters)
48.7008 in (inches)
4.0584 ft (feet)
Box depth

Depth of the package in different measurement units.

220 mm (millimeters)
22 cm (centimeters)
8.6614 in (inches)
0.7218 ft (feet)
Box weight

Weight of the product with all accessories and packaging in different measurement units.

55.3 kg (kilograms)
121.92 lbs (pounds)
Stand width

Width of the stand or distance between the legs in different measurement units.

1428.6 mm (millimeters)
142.86 cm (centimeters)
56.2441 in (inches)
4.687 ft (feet)
Stand depth

Depth of the stand in different measurement units.

396.6 mm (millimeters)
39.66 cm (centimeters)
15.6142 in (inches)
1.3012 ft (feet)
Colors

Information about the colors, in which the specific model is offered to the market.

Black

Ergonomics

Information about the ergonomic functions - height adjustment, swivel angles, tilt angles, etc.

VESA mount

Information about whether there is a possibility for wall mounting according to the VESA Mounting Interface Standard (MIS).

Yes
VESA interface

There are many various interfaces under the VESA standard, which differ in the size of the brackets, the distances between the screw holes and their number.

600 x 400 mm
Removable stand

Information about whether the stand can be dismounted. Usually, this is required for wall mounting.

Yes
Height adjustment

Information about whether the stand allows height adjustment.

No
Landscape/portrait pivot

Some displays have the ability to operate in landscape and portrait mode alike.

No
Left/right swivel

Information whether the display can be swiveled around the stand axis.

No
Forward/backward tilt

Most displays have the ability to be tilted forward and backward as to provide a more comfortable viewing position for the user.

No
Float Lift Stand
Adjustable stand width - 1130 - 1428.6 mm

TV tuner

The TV tuner is a device, which allows the receiving and visualization of a certain type of television signal. There are tuners for digital, analog, cable and satellite television.

TV tuner

Information about the TV tuners, which the current model is equipped with.

Analog (NTSC/PAL/SECAM)
DVB-T
DVB-T2
DVB-C
DVB-S
DVB-S2

System on Chip (SoC)

Information about the central processor, graphic processor and the memory of the model.

Processor brand name

Brand name of the processor trademarked by the manufacturer.

Crystal Processor 4K
CPU cores

The software instructions are performed by the CPU cores. The higher number of cores allows for the parallel (simultaneous) processing of more instructions and achieving higher performance. There are various processors equipped with 1, 2, 4, 6, 8, and more cores.

4

OS, apps and software features

Information about the operating system, applications, various software features if available.

Operating system (OS)

The operating systems of the smart TV sets feature user interface technologies for navigation and other ways of interaction with the smart TV - installing applications, internet browsing, video calls, sharing content with other users, playing videos and music, etc.

Tizen 8.0

Audio

Information about the audio system - number and power of the built-in speakers, supported audio technologies.

Speakers

The speaker is a device, which converts electrical audio signals into acoustic vibrations resulting in corresponding sounds.

2 x 10 W (watts)
2.0 CH
20W
Adaptive Sound
Bluetooth Audio
Dolby Digital Plus MS12
Object Tracking Sound Lite
Q-Symphony

Camera

Many contemporary desktop monitors and smart TV sets have built-in cameras.

Camera

Information whether the current model has a built-in camera or not.

No

Network

Supported network technologies and standards for exchanging data with other devices.

Network

Information about the network technologies and standards supported by the model, which allow for it to connect to and communicate with other devices.

LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
Wi-Fi Direct
DLNA
Bluetooth 5.2
Wireless Dex

Connectivity

Available connectivity ports, slots and interfaces.

Connectivity

Information about the available connectivity ports, slots and interfaces such as USB, infrared port, SD card slot, audio/video and network interfaces, etc.

2 x USB 2.0
1 x Ethernet RJ45
3 x HDMI 2.1
1 x Cable/Antenna In (F-type female)
1 x Optical Audio Out
1 x Antenna (RF) (female)
1 x CI+ 1.4
Anynet+ (HDMI-CEC)
Auto Low Latency Mode (ALLM)
Audio Return Channel (ARC)
Enhanced Audio Return Channel (eARC)
High-bandwidth Digital Content Protection (HDCP) 2.2
InstaPort S (HDMI Quick Switch)
High-Frame Rate (HFR)
Variable Refresh Rate (VRR)

Features

Some additional functional features of the model.

Features

Information about additional software features, technologies, functions and services of the model.

3-side bezelless design
4K Upscaling
AI Auto Game Mode
AI Energy Mode
Accessibility (Voice Guide / Low Vision Support / Hearing Impaired Support / Motion Impaired Support)
Alexa
Ambient Mode
AMD FreeSync Premium
Apple Airplay 2
Bixby
ConnectShare
Contrast Enhancer
Crystal Display
Dynamic Black EQ
Dynamic Crystal Color
Eco Sensor
Filmmaker mode
Gaming Hub
Game Motion Plus
Google Assistant
HDR Gaming Interest Group (HGiG)
Mega Contrast
Mini Map Zoom
Motion Blur Reduction
Motion Xcelerator 120
Multi View
Picture Clarity
Prime Video
Samsung Daily+
Samsung Health
Samsung TV Plus
Samsung Workspace
SmartThings Hub
Super Ultra Wide Game View and Game Bar
Tap View
UHD Dimming
V-Chip
Voice command

Image file formats

Smart TV sets allow the display of different image file formats.

Image file formats

Information about some of the main image file formats supported by the current model.

JPEG
GIF
PNG
MPO
BMP

Audio file formats

Smart TV sets allow playing different audio file formats.

Audio file formats/codecs

Information about some of the main audio file formats/codecs supported by the current model.

AAC (Advanced Audio Coding)
FLAC (Free Lossless Audio Codec, .flac)
M4A (MPEG-4 Audio, .m4a)
MIDI
MP3 (MPEG-2 Audio Layer II, .mp3)
OGG (.ogg, .ogv, .oga, .ogx, .spx, .opus)
WMA (Windows Media Audio, .wma)
WAV (Waveform Audio File Format, .wav, .wave)
APE
AIFF
ALAC

Video file formats

Smart TV sets allow playing various video file formats.

Video file formats/codecs

Information about some of the main video file formats/codecs supported by the current model.

3GPP (3rd Generation Partnership Project, .3gp)
AVI (Audio Video Interleaved, .avi)
ASF (Advanced Systems Format, .asf .wma .wmv)
Flash Video (.flv, .f4v, .f4p, .f4a, .f4b)
H.263
H.264 / MPEG-4 Part 10 / AVC video
H.265 / MPEG-H Part 2 / HEVC
MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks)
M2TS (Blu-ray Disc Audio-Video (BDAV) MPEG-2 Transport Stream, .m2ts, .MTS)
MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v)
MPEG-4
TS (MPEG Transport Stream, .ts, .tsv, .tsa)
VC-1
VP7
VP8
VP9
VOB (Video Object, .VOB)
VRO (DVD-VR, .VRO)
WebM
WMV (Windows Media Video, .wmv)
AV1

Certificates, standards and licenses

Licenses from regulatory agencies, standards, certificates.

Certificates, standards and licenses

List of the standards, certificates and licenses supported/received by the current model.

ENERGY STAR
RoHS

Accessories

Often the packaging of desktop monitors and smart TV sets includes accessories for them.

Accessories

Information about some of the main accessories included in the standard packaging of the current model.

SolarCell Remote - TM2360E (UK only+TM2240A)

Additional features

Information about other features.

Additional features

Information about other features of the current model, which are important and have to be specified.

AirSlim Design

Other models from the DU8075 / DU8005 / DU8079 series of Samsung

List of other models from the same Samsung series, to which the Samsung TU85DU8075 belongs.

View
42.5" Samsung TU43DU8075, VA, Edge LED, 3840 x 2160 pixels, 50 Hz / 60 Hz, 965.5 x 559.9 x 25.7 mm, 8.4 kg
View
49.5" Samsung TU50DU8075, VA, Edge LED, 3840 x 2160 pixels, 50 Hz / 60 Hz, 1118.3 x 644.6 x 25.7 mm, 11.5 kg
View
54.6" Samsung TU55DU8075, VA, Edge LED, 3840 x 2160 pixels, 50 Hz / 60 Hz, 1232.1 x 708.8 x 25.7 mm, 15.5 kg
View
64.5" Samsung TU65DU8075, VA, Edge LED, 3840 x 2160 pixels, 50 Hz / 60 Hz, 1450.9 x 831.9 x 25.7 mm, 20.9 kg
View
74.5" Samsung TU75DU8075, VA, Edge LED, 3840 x 2160 pixels, 50 Hz / 60 Hz, 1676.7 x 960.3 x 26.6 mm, 31.4 kg

Latest comparisons that include Samsung TU85DU8075

The latest comparisons, made by the website visitors, that include Samsung TU85DU8075.

Samsung UN85DU7100
Samsung QN83S85D
Samsung TU85DU8075
View
Samsung TU85DU8075
Samsung TU85DU7175
View
Samsung TU85DU7175
Samsung TU85DU8075
View
Samsung TU85DU8075
Samsung QE65QN90C
View
Samsung UЕ85CU7100
Samsung UЕ85CU8000
Samsung TU85DU8075
Samsung TU85DU7175
View
Samsung TU85DU7175
Samsung TU85DU8075
Samsung UЕ85CU8000
Samsung UЕ85CU7100
View
Samsung UЕ85CU7100
Samsung TU85DU7175
Samsung UЕ85CU8000
Samsung TU85DU8075
View
Samsung QE85Q70D
Samsung QE85Q60D
Samsung TU85DU8075
Samsung TU85DU7175
View

Last viewed models

A list of the last viewed desktop monitors and TVs.

Samsung TU85DU8075

84.6" Samsung TU85DU8075

Display: 84.6 in, VA, Edge LED, 3840 x 2160 pixels
Viewing angles (H/V): 178 ° / 178 °
Refresh rate: 48 Hz - 120 Hz
TV tuner: Analog (NTSC/PAL/SECAM), DVB-T, DVB-T2, DVB-C, DVB-S, DVB-S2
Cores: 4
Dimensions: 1900.9 x 1086.1 x 26.9 mm
Weight: 41.5 kg
