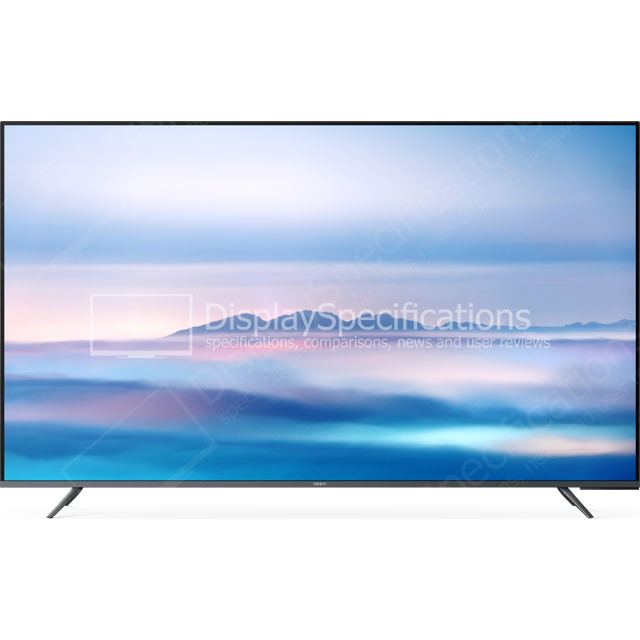

54.6" Oppo Smart TV R1 55 - Specifications

WidthHeightDepthWeightPower consumption
SpecificationsDisplayWrite a review
Display: 54.6 in, VA, Direct LED, 3840 x 2160 pixels
Viewing angles (H/V): 178 ° / 178 °
Brightness: 300 cd/m²
Refresh rate: 50 Hz / 60 Hz
TV tuner: DTMB
SoC: MediaTek MT9652
CPU: ARM Cortex-A73, 1400 MHz, Cores: 4
RAM: 2 GB
Storage: 32 GB
Dimensions: 1228 x 712 x 69 mm
Weight: 12.7 kg

Add to compare Suggest an edit

Brand, series, model

Information about the brand, series, model and model aliases.

Brand

Name of the company-manufacturer.

Oppo
Series

Name of the series, which the model belongs to.

R1
Model

Designation of the model.

Smart TV R1 55
Model year

The year in which this model was announced.

2020

Display

Information about the main characteristics of the display - panel, backlight, resolution, refresh rate, etc.

Size class

Size class of the display as declared by the manufacturer. Often this is the rounded value of the actual size of the diagonal in inches.

54.6 in (inches)
Diagonal

Approximate diagonal size of the display. If the manufacturer does not provide such information, the diagonal is calculated from the width and height of the screen.

1388 mm (millimeters)
138.8 cm (centimeters)
54.6457 in (inches)
4.5538 ft (feet)
Width

Approximate width of the display. If the manufacturer does not provide such information, the width is calculated from the diagonal and the aspect ratio.

1209.6 mm (millimeters)
120.96 cm (centimeters)
47.622 in (inches)
3.9685 ft (feet)
Height

Approximate height of the display. If the manufacturer does not provide such information, the height is calculated from the diagonal and the aspect ratio.

680.4 mm (millimeters)
68.04 cm (centimeters)
26.7874 in (inches)
2.2323 ft (feet)
Panel type

There are various panel technologies. Each has its own specific features - viewing angles, color reproduction, response time, brightness/contrast, production cost, etc. The image quality depends directly on the type of the display panel used.

VA
Panel bit depth

The most widely used panels are those with 6, 8, and 10 bits for each of the RGB components of the pixel. They provide 18-, 24-, and 30-bit color, respectively.

10 bits (8 bits + FRC)
FRC

Frame Rate Control (FRC) is a method, which allows the pixels to show more color tones. With quick cyclic switching between different color tones, an illusion for a new intermediate color tone is created. For example, by using FRC, a 6-bit display panel is able to show 16.7 millioin colors, which are typical for 8-bit display panels, and not the standard 262200 colors, instead. There are different FRC algorithms.

Yes
Colors

The maximum number of colors, which the display is able to reproduce, depends on the type of the panel in use and color enhancing technologies like FRC.

1073741824 colors
30 bits
Aspect ratio

The ratio between the horizontal and the vertical side of the display. Some of the standard and widely used aspect ratios are 4:3, 5:4, 16:9 and 16:10.

1.778:1
16:9
Resolution

Information about the number of pixels on the horizontal and vertical side of the screen. A higher resolution allows the display of a more detailed and of higher quality image.

3840 x 2160 pixels
Ultra HD (UHD) / 4K / 2160p
Pixel pitch

The pixel pitch shows the distance from the centers of two neighboring pixels. In displays, which have a native resolution (the TFT ones, for example), the pixel pitch depends on the resolution and the size of the screen.

0.315 mm (millimeters)
0.0315 cm (centimeters)
0.0124 in (inches)
0.001 ft (feet)
Pixel density

Information of the number of pixels in a unit of length. With the decrease of the display size and the increase of its resolution, the pixel density increases.

80 ppi (pixels per inch)
31 ppcm (pixels per centimeter)
Display area

The percentage of the approximate area, taken by the active part of the screen, to the total front area.

94.13 % (percent)
Backlight

The backlight is the source of light of the LCD display panels. The type of backlight determines the image quality and the color space of the display. There are various backlights such as CCFL, LED, WLED, RGB-LED, and etc.

Direct LED
DCI P3

DCI P3 is a color space, introduced in 2007 by the SMPTE. It is used in digital cinema and has a much wider gamut than the sRGB.

93 % (percent)
Brightness

Information about the brightness of the screen. It is measured in candela per square metre (cd/m²).

300 cd/m² (candela per square meter)
HDR

HDR expands the contrast ratio (peak luminance and minimal black levels) and color palette to achieve more details across the whole image - from the darkest parts to the brightest ones, which results in more realistic and life-like image.

HDR10
HLG (Hybrid Log Gamma)
HDR10+
Horizontal viewing angle

Information about the maximum horizontal viewing angle, within which the image on the screen is of acceptable quality.

178 ° (degrees)
Vertical viewing angle

Information about the maximum vertical viewing angle, within which the image on the screen is of acceptable quality.

178 ° (degrees)
Local dimming - 210 zones

3D

3D displays use various technologies to achieve a 3D effect. Each of these technologies has its own advantages and drawbacks.

3D

Information on whether 3D is supported or not.

No

Frequencies

Information about the horizontal and vertical refresh rates/frequencies.

Vertical frequency (digital)

The vertical frequency/refresh rate shows how many times in a second the image on the screen is refreshed.

50 Hz / 60 Hz (hertz)

Power supply and consumption

Information about the power supply and consumption, energy efficiency class, etc.

110V

Permissible voltage tolerance in a 110-volt electric system.

100 V - 120 V (volts)
Alternating current frequency

Requirement regarding the alternating current frequency in the electric system.

50 Hz - 60 Hz (hertz)
Power consumption (sleep)

Power consumption in sleep/stand by/suspend mode.

0.5 W (watts)
Power consumption (maximum)

The maximum possible power consumption.

130 W (watts)

Dimensions, weight and color

Information about the dimensions and the weight of the specific model with and without stand as well as the colors, in which it is offered to the market.

Width

Width without stand in different measurement units.

1228 mm (millimeters)
122.8 cm (centimeters)
48.3465 in (inches)
4.0289 ft (feet)
Height

Height without stand in different measurement units.

712 mm (millimeters)
71.2 cm (centimeters)
28.0315 in (inches)
2.336 ft (feet)
Depth

Depth without stand in different measurement units.

69 mm (millimeters)
6.9 cm (centimeters)
2.7165 in (inches)
0.2264 ft (feet)
Weight

Weight without stand in different measurement units.

12.7 kg (kilograms)
28 lbs (pounds)
Width with stand

Width with stand in different measurement units.

1228 mm (millimeters)
122.8 cm (centimeters)
48.3465 in (inches)
4.0289 ft (feet)
Height with stand

Height with stand in different measurement units.

772 mm (millimeters)
77.2 cm (centimeters)
30.3937 in (inches)
2.5328 ft (feet)
Depth with stand

Depth with stand in different measurement units.

206 mm (millimeters)
20.6 cm (centimeters)
8.1102 in (inches)
0.6759 ft (feet)
Weight with stand

Weight with stand in different measurement units.

12.9 kg (kilograms)
28.44 lbs (pounds)
Colors

Information about the colors, in which the specific model is offered to the market.

Black

Ergonomics

Information about the ergonomic functions - height adjustment, swivel angles, tilt angles, etc.

Height adjustment

Information about whether the stand allows height adjustment.

No
Landscape/portrait pivot

Some displays have the ability to operate in landscape and portrait mode alike.

No
Left/right swivel

Information whether the display can be swiveled around the stand axis.

No
Forward/backward tilt

Most displays have the ability to be tilted forward and backward as to provide a more comfortable viewing position for the user.

No

TV tuner

The TV tuner is a device, which allows the receiving and visualization of a certain type of television signal. There are tuners for digital, analog, cable and satellite television.

TV tuner

Information about the TV tuners, which the current model is equipped with.

DTMB

System on Chip (SoC)

Information about the central processor, graphic processor and the memory of the model.

SoC

The system-on-chip (SoC) integrates different hardware components such as CPU, GPU, memory and others.

MediaTek MT9652
Processor (CPU)

The main function of the processor (CPU) is to interpret and carry out instructions, thus allowing the functioning of the operating system and the software applications.

ARM Cortex-A73
CPU cores

The software instructions are performed by the CPU cores. The higher number of cores allows for the parallel (simultaneous) processing of more instructions and achieving higher performance. There are various processors equipped with 1, 2, 4, 6, 8, and more cores.

4
CPU frequency

The clock rate/frequency of the CPU is measured in megahertz (MHz) or gigahertz (GHz) and indicates its working speed. Within one cycle or tick the processor may perform a varied number of instructions.

1400 MHz (megahertz)
GPU

The GPU processes computer graphics calculations. It is actively used in games, video decoding/playing, user interface visualization and so on. Its parallel architecture allows for its usage in specific calculations, which are processed more effectively by the GPU than by the CPU.

ARM Mali-G52 MC1
GPU cores

Similar to the CPU, the GPU may have more than one core, which serve for the parallel computing of various tasks and achieving better performance with various software applications.

1
RAM capacity

The random-access memory (RAM) is used by the operating system and the software applications installed. Usually, more RAM provides better performance.

2 GB (gigabytes)
Storage

Information about the storage capacity, which is used for the operating system and for installing different applications, saving video, music, photos and other data.

32 GB (gigabytes)

OS, apps and software features

Information about the operating system, applications, various software features if available.

Operating system (OS)

The operating systems of the smart TV sets feature user interface technologies for navigation and other ways of interaction with the smart TV - installing applications, internet browsing, video calls, sharing content with other users, playing videos and music, etc.

ColorOS TV

Audio

Information about the audio system - number and power of the built-in speakers, supported audio technologies.

Speakers

The speaker is a device, which converts electrical audio signals into acoustic vibrations resulting in corresponding sounds.

2 x 10 W (watts)
2.0 CH
Dolby Audio

Camera

Many contemporary desktop monitors and smart TV sets have built-in cameras.

Camera

Information whether the current model has a built-in camera or not.

No

Network

Supported network technologies and standards for exchanging data with other devices.

Network

Information about the network technologies and standards supported by the model, which allow for it to connect to and communicate with other devices.

LAN
Wi-Fi
802.11a (IEEE 802.11a-1999)
802.11b (IEEE 802.11b-1999)
802.11g (IEEE 802.11g-2003)
802.11n (IEEE 802.11n-2009)
802.11n 5GHz
802.11ac (IEEE 802.11ac)
802.11ax (IEEE 802.11ax, Wi-Fi 6)
Wi-Fi Direct
DLNA
NFC
Bluetooth 5.0

Connectivity

Available connectivity ports, slots and interfaces.

Connectivity

Information about the available connectivity ports, slots and interfaces such as USB, infrared port, SD card slot, audio/video and network interfaces, etc.

2 x USB 2.0
1 x Ethernet RJ45
3 x HDMI 2.0
1 x AV Composite In 3.5 mm jack
1 x Optical Audio Out
Enhanced Audio Return Channel (eARC)

Features

Some additional functional features of the model.

Features

Information about additional software features, technologies, functions and services of the model.

AI PQ
Black level equalizer
Color management
Dynamic contrast enhancer
Far-field voice control
MEMC (Motion Estimation Motion Compensation)
Noise cancellation
Oppo Share
Super HDR

Image file formats

Smart TV sets allow the display of different image file formats.

Image file formats

Information about some of the main image file formats supported by the current model.

JPEG
GIF
PNG
MPO
BMP

Audio file formats

Smart TV sets allow playing different audio file formats.

Audio file formats/codecs

Information about some of the main audio file formats/codecs supported by the current model.

AAC (Advanced Audio Coding)
FLAC (Free Lossless Audio Codec, .flac)
M4A (MPEG-4 Audio, .m4a)
MIDI
MP3 (MPEG-2 Audio Layer II, .mp3)
OGG (.ogg, .ogv, .oga, .ogx, .spx, .opus)
WMA (Windows Media Audio, .wma)
WAV (Waveform Audio File Format, .wav, .wave)
APE
AIFF
ALAC

Video file formats

Smart TV sets allow playing various video file formats.

Video file formats/codecs

Information about some of the main video file formats/codecs supported by the current model.

3GPP (3rd Generation Partnership Project, .3gp)
AVI (Audio Video Interleaved, .avi)
ASF (Advanced Systems Format, .asf .wma .wmv)
Flash Video (.flv, .f4v, .f4p, .f4a, .f4b)
H.263
H.264 / MPEG-4 Part 10 / AVC video
H.265 / MPEG-H Part 2 / HEVC
MKV (Matroska Multimedia Container, .mkv .mk3d .mka .mks)
M2TS (Blu-ray Disc Audio-Video (BDAV) MPEG-2 Transport Stream, .m2ts, .MTS)
MP4 (MPEG-4 Part 14, .mp4, .m4a, .m4p, .m4b, .m4r, .m4v)
MPEG-4
TS (MPEG Transport Stream, .ts, .tsv, .tsa)
VC-1
VP7
VP8
VP9
VOB (Video Object, .VOB)
VRO (DVD-VR, .VRO)
WebM
WMV (Windows Media Video, .wmv)

Certificates, standards and licenses

Licenses from regulatory agencies, standards, certificates.

Certificates, standards and licenses

List of the standards, certificates and licenses supported/received by the current model.

TÜV Rheinland Low Blue Light Certified

Accessories

Often the packaging of desktop monitors and smart TV sets includes accessories for them.

Accessories

Information about some of the main accessories included in the standard packaging of the current model.

Bluetooth voice remote control
AV composite in cable

Additional features

Information about other features.

Additional features

Information about other features of the current model, which are important and have to be specified.

Supports an FHD external camera

Other models from the R1 series of Oppo

List of other models from the same Oppo series, to which the Oppo Smart TV R1 55 belongs.

View
64.5" Oppo Smart TV R1 65, VA, Direct LED, 3840 x 2160 pixels, 50 Hz / 60 Hz, 1448 x 834 x 69 mm, 18.1 kg

Latest comparisons that include Oppo Smart TV R1 55

The latest comparisons, made by the website visitors, that include Oppo Smart TV R1 55.

Oppo Smart TV R1 55
Oppo Smart TV R1 65
Oppo Smart TV S1 65
Vizio OLED55-H1
View
TCL 55P715
Oppo Smart TV R1 55
View
Oppo Smart TV R1 55
Oppo Smart TV S1 65
View
Oppo Smart TV R1 65
Oppo Smart TV R1 55
View
Haier LE55K6500U
Oppo Smart TV R1 55
View
Panasonic TX-55JZ1000
Sony XR-55A90J NA
Philips 55OLED806/12
Oppo Smart TV R1 55
View
Xiaomi Mi TV Q1 75
Oppo Smart TV S1 65
Oppo Smart TV R1 65
Oppo Smart TV R1 55
View
Oppo Smart TV R1 55
Xiaomi Mi QLED TV 4K 55
View

Last viewed models

A list of the last viewed desktop monitors and TVs.

Oppo Smart TV R1 55

54.6" Oppo Smart TV R1 55

Display: 54.6 in, VA, Direct LED, 3840 x 2160 pixels
Viewing angles (H/V): 178 ° / 178 °
Brightness: 300 cd/m²
Refresh rate: 50 Hz / 60 Hz
TV tuner: DTMB
SoC: MediaTek MT9652
CPU: ARM Cortex-A73, 1400 MHz, Cores: 4
RAM: 2 GB
Storage: 32 GB
Dimensions: 1228 x 712 x 69 mm
Weight: 12.7 kg
