Comparison between:
- 74.5" TCL 75T69C

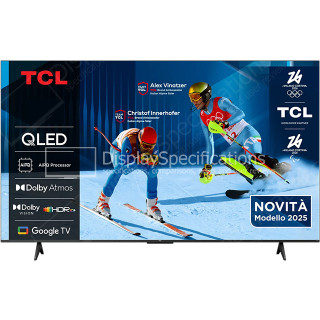

- 84.6" TCL 85T69C
Brand, series, model
Information about the brand, series, model and model aliases.
| TCL 75T69C | TCL 85T69C | |
| Series | T6C | T6C |
 |  | |
| Model year | 2025 | 2025 |
Display
Information about the main characteristics of the display - panel, backlight, resolution, refresh rate, etc.
| Size class | 74.5 in | 84.6 in |
| Diagonal | 1893 mm 189.3 cm 74.5276 in 6.2106 ft | 2147.83 mm 214.783 cm 84.5602 in 7.0467 ft |
| Width | 1650.24 mm 165.024 cm 64.9701 in 5.4142 ft | 1872 mm 187.2 cm 73.7008 in 6.1417 ft |
| Height | 928.26 mm 92.826 cm 36.5457 in 3.0455 ft | 1053 mm 105.3 cm 41.4567 in 3.4547 ft |
| Panel manufacturer | CSOT | CSOT |
| Panel type | HVA | HVA |
| Panel bit depth | 10 bits (8 bits + FRC) | 10 bits (8 bits + FRC) |
| FRC | Yes | Yes |
| Colors | 1073741824 colors 30 bits | 1073741824 colors 30 bits |
| Aspect ratio | 1.778:1 16:9 | 1.778:1 16:9 |
| Resolution | 3840 x 2160 pixels Ultra HD (UHD) / 4K / 2160p | 3840 x 2160 pixels Ultra HD (UHD) / 4K / 2160p |
| Pixel pitch | 0.43 mm 0.043 cm 0.0169 in 0.0014 ft | 0.488 mm 0.0488 cm 0.0192 in 0.0016 ft |
| Pixel density | 59 ppi 23 ppcm | 52 ppi 20 ppcm |
| Display area | 95.77 % | 95.77 % |
| Backlight | Direct LED | Direct LED |
| DCI P3 | 93 % | 93 % |
| HDR | HDR10 HLG (Hybrid Log Gamma) HDR Dolby Vision HDR10+ | HDR10 HLG (Hybrid Log Gamma) HDR Dolby Vision HDR10+ |
| Horizontal viewing angle | 178 ° | 178 ° |
| Vertical viewing angle | 178 ° | 178 ° |
| Colorful Quantum Crystals Ultra-high Light Efficiency Composite Nano-Diamond Structure Multi-Layer Co-Extrusion Precision Crafting | Colorful Quantum Crystals Ultra-high Light Efficiency Composite Nano-Diamond Structure Multi-Layer Co-Extrusion Precision Crafting |
3D
3D displays use various technologies to achieve a 3D effect. Each of these technologies has its own advantages and drawbacks.
| 3D | No | No |
Frequencies
Information about the horizontal and vertical refresh rates/frequencies.
| Vertical frequency (digital) | 50 Hz / 60 Hz | 50 Hz / 60 Hz |
Power supply and consumption
Information about the power supply and consumption, energy efficiency class, etc.
| 110V | 100 V - 120 V | 100 V - 120 V |
| 220V | 220 V - 240 V | 220 V - 240 V |
| Alternating current frequency | 50 Hz - 60 Hz | 50 Hz - 60 Hz |
| Power consumption (sleep) | 0.5 W | 0.5 W |
Dimensions, weight and color
Information about the dimensions and the weight of the specific model with and without stand as well as the colors, in which it is offered to the market.
| Width | 1667.64 mm 166.764 cm 65.6551 in 5.4713 ft | 1890 mm 189 cm 74.4094 in 6.2008 ft |
| Height | 959.11 mm 95.911 cm 37.7602 in 3.1467 ft | 1089 mm 108.9 cm 42.874 in 3.5728 ft |
| Depth | 74.7 mm 7.47 cm 2.9409 in 0.2451 ft | 96 mm 9.6 cm 3.7795 in 0.315 ft |
| Weight | 18 kg 39.68 lbs | - |
| Width with stand | 1667.64 mm 166.764 cm 65.6551 in 5.4713 ft | 1890 mm 189 cm 74.4094 in 6.2008 ft |
| Height with stand | 1027 mm 102.7 cm 40.4331 in 3.3694 ft | 1165 mm 116.5 cm 45.8661 in 3.8222 ft |
| Depth with stand | 349.93 mm 34.993 cm 13.7768 in 1.1481 ft | 386 mm 38.6 cm 15.1969 in 1.2664 ft |
| Weight with stand | 18.2 kg 40.12 lbs | - |
| Stand width | 1290.04 mm 129.004 cm 50.789 in 4.2324 ft | 1716 mm 171.6 cm 67.5591 in 5.6299 ft |
| Stand depth | 349.93 mm 34.993 cm 13.7768 in 1.1481 ft | 386 mm 38.6 cm 15.1969 in 1.2664 ft |
| Colors | Black | Black |
Ergonomics
Information about the ergonomic functions - height adjustment, swivel angles, tilt angles, etc.
| VESA mount | Yes | Yes |
| VESA interface | 300 x 300 mm | 600 x 300 mm |
| Removable stand | Yes | Yes |
| Height adjustment | No | No |
| Landscape/portrait pivot | No | No |
| Left/right swivel | No | No |
| Forward/backward tilt | No | No |
TV tuner
The TV tuner is a device, which allows the receiving and visualization of a certain type of television signal. There are tuners for digital, analog, cable and satellite television.
| TV tuner | Analog (NTSC/PAL/SECAM) DVB-T DVB-T2 DVB-C DVB-S DVB-S2 | Analog (NTSC/PAL/SECAM) DVB-T DVB-T2 DVB-C DVB-S DVB-S2 |
System on Chip (SoC)
Information about the central processor, graphic processor and the memory of the model.
| Processor brand name | AiPQ | AiPQ |
OS, apps and software features
Information about the operating system, applications, various software features if available.
| Operating system (OS) | Google TV | Google TV |
Audio
Information about the audio system - number and power of the built-in speakers, supported audio technologies.
| Speakers | 2 x 15 W | 2 x 15 W |
| Subwoofer | - | 1 x 20 W |
| 2.0 CH 30 W Dolby Atmos DTS: X DTS Virtual: X | 2.1 CH 50 W Dolby Atmos Dolby Digital+ DTS Onkyo Sound System |
Camera
Many contemporary desktop monitors and smart TV sets have built-in cameras.
| Camera | No | No |
Network
Supported network technologies and standards for exchanging data with other devices.
| Network | LAN Wi-Fi 802.11a 802.11b 802.11g 802.11n 802.11n 5GHz 802.11ac Bluetooth Wi-Fi Direct DLNA | Wi-Fi 802.11a 802.11b 802.11g 802.11n 802.11n 5GHz 802.11ac Bluetooth Wi-Fi Direct |
Connectivity
Available connectivity ports, slots and interfaces.
| Connectivity | 1 x USB 3.0 (Type-A; downstream) 1 x Ethernet RJ45 3 x HDMI 2.0 1 x Satellite In (F-type female) 1 x Optical Audio Out 1 x Antenna (RF) (female) 1 x CI+ 1.4 | 1 x USB 2.0 (Type-A; downstream) 4 x HDMI 2.0 1 x Satellite In (F-type female) 1 x AV Composite In 3.5 mm jack 1 x Optical Audio Out 1 x Antenna (RF) (female) 1 x CI+ 1.4 |
| Auto Low Latency Mode (ALLM) Enhanced Audio Return Channel (eARC) HDMI CEC (T-Link) High-bandwidth Digital Content Protection (HDCP) 2.3 | Auto Low Latency Mode (ALLM) Enhanced Audio Return Channel (eARC) HDMI CEC (T-Link) High-bandwidth Digital Content Protection (HDCP) 2.3 |
Features
Some additional functional features of the model.
| Features | AI Clarity AI Color AI Contrast AI HDR AI Motion Alexa Apple AirPlay 2 Apple HomeKit Auto Game Mode Chromecast built-in Disney+ DLG (Dual Line Gate) Game Accelerator - FHD at 120Hz Game Master Google Assistant HDR Pro Motion Estimation Motion Compensation (MEMC) Netflix Prime Video Quantum Dot Color UHD Upscaling Ultra-wide Color Gamut YouTube | AI Clarity AI Color AI Contrast AI HDR AI Motion Alexa Apple AirPlay 2 Apple HomeKit Auto Game Mode Chromecast built-in Disney+ DLG (Dual Line Gate) Game Accelerator - FHD at 120Hz Game Master Google Assistant HDR Pro Motion Estimation Motion Compensation (MEMC) Netflix Prime Video Quantum Dot Color UHD Upscaling Ultra-wide Color Gamut YouTube |
Image file formats
Smart TV sets allow the display of different image file formats.
| Image file formats | JPEG GIF PNG | JPEG GIF PNG |
Audio file formats
Smart TV sets allow playing different audio file formats.
| Audio file formats/codecs | 3GPP AAC AAC+ FLAC M4A MP3 WMA WAV | 3GPP AAC AAC+ FLAC M4A MP3 WMA WAV |
Video file formats
Smart TV sets allow playing various video file formats.
| Video file formats/codecs | 3GPP AVI DivX H.263 H.264 H.265 MKV MP4 MPEG-4 VP9 WMV Xvid | 3GPP AVI DivX H.263 H.264 H.265 MKV MP4 MPEG-4 VP9 WMV Xvid |
Operating and storage conditions
There are certain requirements for the environmental conditions, in which the display should be used and stored in order to function properly.
| Operating temperature | 5 °C - 35 °C 41 °F - 95 °F | 5 °C - 35 °C 41 °F - 95 °F |
| Operating humidity | 20 % - 80 % | 20 % - 80 % |
| Storage temperature | -15 °C - 45 °C 5 °F - 113 °F | -15 °C - 45 °C 5 °F - 113 °F |
| Storage humidity | 10 % - 90 % | 10 % - 90 % |
Accessories
Often the packaging of desktop monitors and smart TV sets includes accessories for them.
| Accessories | Voice remote control | Voice remote control |
Additional features
Information about other features.
| Additional features | FullView Metal Bezelless Design | FullView Metal Bezelless Design |
| TCL 75T69C | TCL 85T69C |
